thicknessCONTROL Performante Messsysteme für Elektrodenfolien

thicknessCONTROL Performante Messsysteme für Elektrodenfolien

Skalierbare Systeme zur Dickenmessung von Elektrodenfolien

Micro-Epsilon verfügt über ein großes Angebot an Dickenmesssystemen für verschiedene Anforderungen und Anwendungsbereiche in Beschichtungslinien. Die thicknessCONTROL C-Rahmen sind für den Einsatz in sehr schwierigen Umgebungen wie in der Trockenbeschichtung konzipiert. Der robuste Rahmen und die integrierte Temperaturkompensation sorgen dafür, dass eine hohe Messgenauigkeit auch bei hohen Temperaturen erreicht wird. Die Systeme können applikationsspezifisch für verschiedene Folienbreiten mit bis zu 8 Messspuren ausgeführt werden.

Persönliche Beratung
logo

Besonderheiten

  1. Hochpräzises Dickenmessssystem für beschichtete Anoden- und Kathodenfolien
  2. Eingesetzte Sensorik: Konfokal-chromatische Sensoren
  3. Ideal für die Dickenmessung und Regelung bei der Trockenbeschichtung
  4. Robuste Bauform mit integrierter Temperaturkompensation
  5. Messbereich Dicke ab 10 µm
  6. Systemgenauigkeit ab ±0,3 µm
  7. Umfassendes Softwarepaket zur Datenakquisition, Signalverarbeitung und Automatisierung
  8. Konfigurierbar für 1 | 2 | 3 | 4 | 6 | 8 Spuren
[{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,63,64,68,69,90,91,92,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8317,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8316,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord-West","address":"Duisburger Str. 47\r\n46535 Dinslaken","central":false,"comment":"B\u00fcro Nord-West","companyName":"Micro-Epsilon","countries":"54","deZip":"40,41,42,44,45,46,47,48,49,50,51,52,53,58,59","email":"manfred.vanerp@micro-epsilon.de","emailCc":"astrid.bieringer@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 572","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1637},"internalNote":"","lName":"","map":null,"mobile":"","name":"Manfred van Erp","phone1":"+49 8542 \/ 168 - 572","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8315,"type":null,"uid":71,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8305,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8314,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Mitte","address":"Mantelhofstrasse 12\r\n73457 Essingen\/Aalen","central":false,"comment":"B\u00fcro S\u00fcd-Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"73,74,82,86,87,88,89","email":"joachim.bauer@micro-epsilon.de","emailCc":"gertraud.moser@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 574","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1634},"internalNote":"","lName":"","map":null,"mobile":"","name":"Joachim Bauer","phone1":"+49 8542 \/ 168 - 574","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8313,"type":null,"uid":74,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8312,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,75,76,77,78,79","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8311,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8310,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Franz Hochwimmer
+49 8542 / 168 - 133
Zum Kontaktformular
Ihre Anfrage zu: {product}
Bitte fügen Sie das Ergebnis der unten stehenden Aufgabe ein. Damit wird Spam vermieden.
captcha
* Pflichtangaben
Wir behandeln Ihre Daten vertraulich. Bitte lesen Sie dazu unsere Datenschutzerklärung.

Ideal für zur Dickenmessung von bis zu 8 Spuren

Das thicknessCONTROL kann einerseits zur Festspurmessung eingesetzt werden, z.B. zur Center-Line Messung (Mittendicke) oder zur Dickenmessung am Rand. Alternativ kann das Sensorsystem auch zur traversierenden Dickenmessung von beschichteten Batteriefolien eingesetzt werden. Werden die Systeme mit mehreren Sensoren ausgestattet, können maximal 8 Spuren gleichzeitig erfasst werden.

Cener-Line-Messung mit thicknessCONTROL

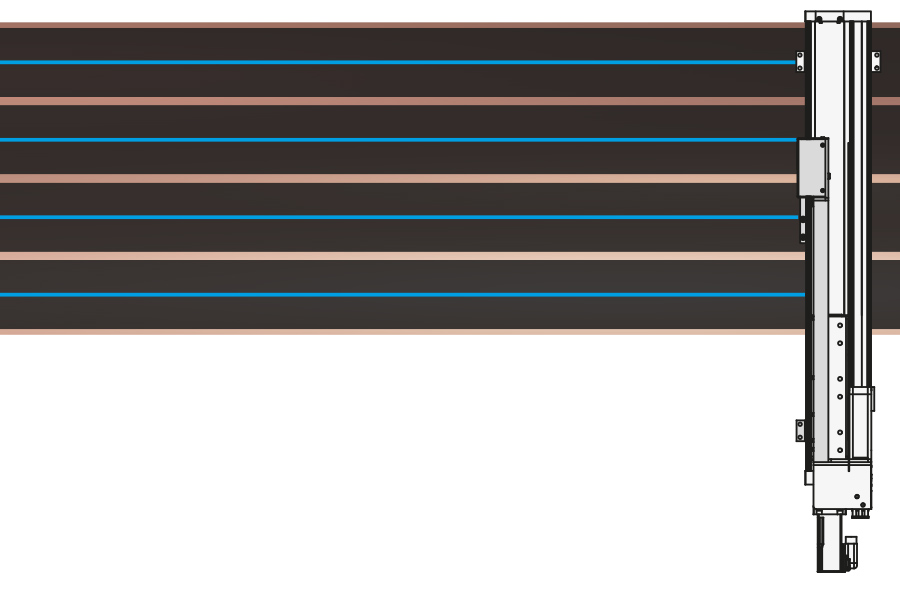

traversierende Dickenmessung mit thicknessCONTROL
