scanCONTROL 30x0

Schnelle und hochpräzise 2D/3D-Profilmessung

High-Performance Laser-Scanner

Laser-Scanner der Serie scanCONTROL 30x0 zählen zu den leistungsfähigsten Profilsensoren im Hinblick auf Baugröße, Genauigkeit und Messrate. Die Laser-Scanner liefern kalibrierte 2D-Profildaten mit bis zu ca. 10 Millionen Punkten pro Sekunde. Mit einer Profilfrequenz von maximal 10 kHz sind die Scanner zur präzisen Profilmessung in dynamischen Prozessen ausgelegt. Die hochauflösende Sensormatrix bietet eine Auflösung von 2.048 Punkten bei einem bestmöglichen Punktabstand von nur 12 µm. Damit können auch kleinste Details zuverlässig erfasst werden.

Persönliche Beratung
logo

Besonderheiten

  1. Messbereich z-Achse bis 600 mm
  2. Messbereich x-Achse bis 380 mm
  3. Messgeschwindigkeit bis zu 10 kHz
  4. Messrate bis zu ca. 10.000.000 Punkte/sec
  5. Linien-Linearität z-Achse ab 1,5 μm
  6. Auflösung x-Achse bis zu 2.048 Punkte
  7. Einstellbare Betriebsarten
  8. Auch mit blauem Laser verfügbar
  9. Kompatibel mit Cognex VisionPro
  10. Schnellste SMART-Auswertung direkt im Sensor: bis zu 10 kHz
  11. Optimale Anbindung an SPS dank UDP-Bundling ohne Informationsverlust
[{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,104","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"diniel.patel@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1859},"internalNote":"\u003Cp\u003EBA,BG,\u003Cstrong\u003EDE\u003C\/strong\u003E,GR,HR,HU,ID,\u003Cstrong\u003EIT\u003C\/strong\u003E,LI,ME,MK,MT,PL,RS,RU,SI,TR\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Diniel Patel","phone1":"+49 8542 \/ 168 - 627","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":7683,"type":null,"uid":180,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,41","deZip":"36,60,61,62,63,64,68,69,70,71,72,73,74,75,76,77,78,79,82,86,87,88,89,90,91,92,96,97","email":"dominik.erbersdobler@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 656","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":54505},"internalNote":"","lName":"","map":null,"mobile":"","name":"Dominik Erbersdobler","phone1":"+49 8542 \/ 168 - 567","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":512,"type":null,"uid":223,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,39,95,98,99","email":"thomas.reitberger@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1854},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas Reitberger","phone1":"+49 8542 \/ 168 - 652","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":7686,"type":null,"uid":182,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,13","deZip":"20,21,22,23,24,25,26,27,28,29,40,41,42,43,44,45,46,47,48,49,80,81,83,84,85,93,94","email":"viktor.kirchgessner@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1856},"internalNote":"\u003Cp\u003E\u003Cstrong\u003EAT,DE\u003C\/strong\u003E,EE,IS,LT,LV\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Viktor Kirchgessner","phone1":"+49 8542 \/ 168 - 478","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":7687,"type":null,"uid":183,"usStates":"","website":"","worldwide":false},{"activity":"ME_DE_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,41","deZip":"30,31,32,38,50,51,52,53,58,59","email":"matthias.schuhbauer@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":56413},"internalNote":"","lName":"","map":null,"mobile":"","name":"Matthias Schuhbauer","phone1":"+49 8542 \/ 168 - 528","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":513,"type":null,"uid":296,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V3D","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":false,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,82,83,84,85,90,91,92,93,94,96","email":"tobias.wimmer@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":53102},"internalNote":"\u003Cp\u003EAT,DE,EE,IS,LT,LV\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Tobias Wimmer","phone1":"+49 8542 \/ 168 - 454","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":7954,"type":null,"uid":212,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,63,64,68,69,90,91,92,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8317,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8316,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord-West","address":"Duisburger Str. 47\r\n46535 Dinslaken","central":false,"comment":"B\u00fcro Nord-West","companyName":"Micro-Epsilon","countries":"54","deZip":"40,41,42,44,45,46,47,48,49,50,51,52,53,58,59","email":"manfred.vanerp@micro-epsilon.de","emailCc":"astrid.bieringer@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 572","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1637},"internalNote":"","lName":"","map":null,"mobile":"","name":"Manfred van Erp","phone1":"+49 8542 \/ 168 - 572","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8315,"type":null,"uid":71,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8305,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8314,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Mitte","address":"Mantelhofstrasse 12\r\n73457 Essingen\/Aalen","central":false,"comment":"B\u00fcro S\u00fcd-Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"73,74,82,86,87,88,89","email":"joachim.bauer@micro-epsilon.de","emailCc":"gertraud.moser@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 574","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1634},"internalNote":"","lName":"","map":null,"mobile":"","name":"Joachim Bauer","phone1":"+49 8542 \/ 168 - 574","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8313,"type":null,"uid":74,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8312,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,75,76,77,78,79","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8311,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8310,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Micro-Epsilon Messtechnik 3D-Zentrale
+49 8542 / 168 - 888
Zum Kontaktformular

Finden Sie Ihren Ansprechpartner

Ihre Anfrage zu: {product}
Bitte fügen Sie das Ergebnis der unten stehenden Aufgabe ein. Damit wird Spam vermieden.
captcha
* Pflichtangaben
Wir behandeln Ihre Daten vertraulich. Bitte lesen Sie dazu unsere Datenschutzerklärung.

Großer Messbereich mit 430 und 600 mm

Die scanCONTROL 30x2 Laserscanner sind nun auch mit einem großem Messbereich erhältlich, der ein Messfeld von 430 x 390 mm bzw. 600 x 600 mm abdeckt. Dadurch können große Messobjekte mit hoher Genauigkeit erfasst werden.

Laser scanner large measuring range
Profilmessung mit Screenshot auf inhomogene Oberflächen

HDR Modus

Dank des High Dynamic Range Modus generiert der Sensor exakte Messergebnisse auch auf inhomogenen Oberflächen. Die Belichtungen erfolgen zeitgleich ohne Zeitversatz und ermöglichen die zuverlässige Erfassung von schnell bewegten Objekten.

Schnell zum Messergebnis dank Betriebsmodi

Je nach Messaufgabe kann aus drei vordefinierten Betriebsarten gewählt werden. „High-Resolution“ für die allerhöchste Präzision, „High Dynamic Range“ für optimale Profilerfassung auf schwierigen Oberflächen und „High Speed“ für schnellstmögliche Messungen.

Darstellung Messung Laserscanner

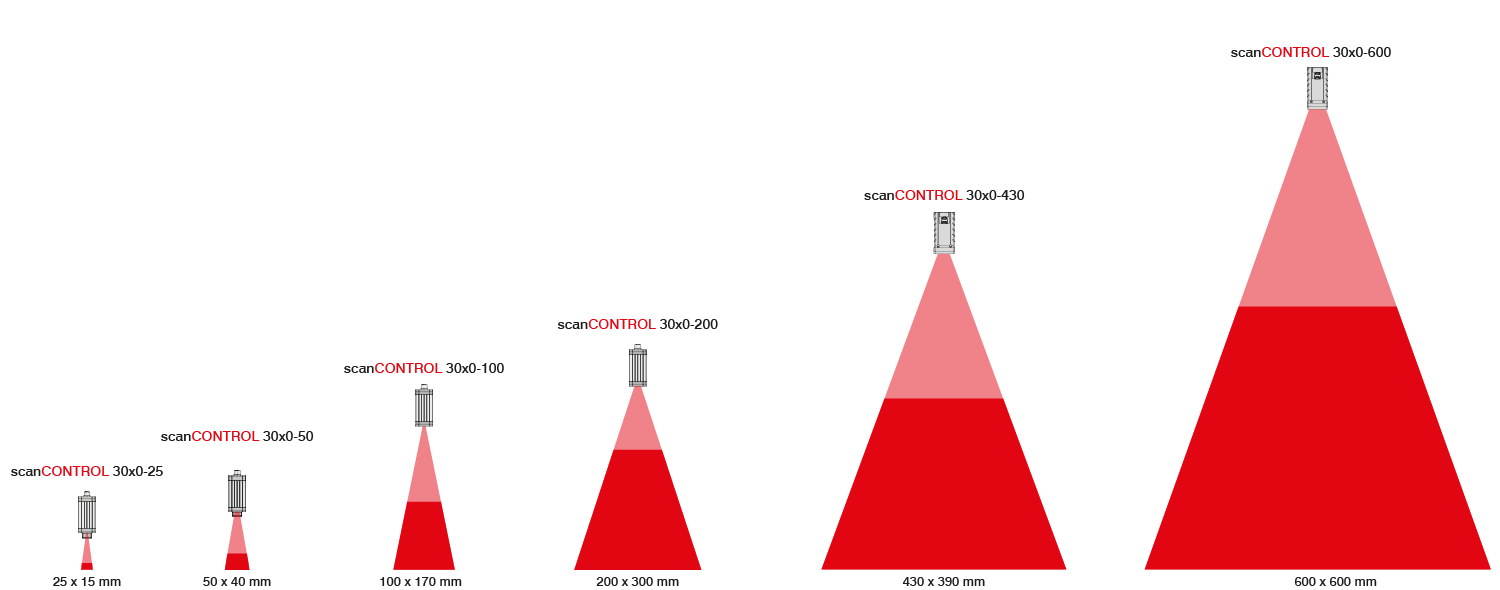

Verfügbare Messbereiche

mögliche Messbereiche scanCONTROL 30x0
