thicknessGAUGE

Sensorsystem zur präzisen Dickenmessung von Band- und Plattenmaterial

thicknessGAUGE O.EC

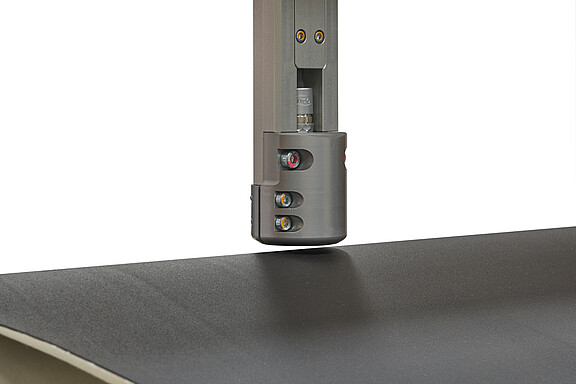

Das thicknessGAUGE O.EC ist ein kompaktes Inline-Messsystem in stabiler O-Rahmenbauform mit einer Aluminiumwalze und einem integriertem Schaltschrank. Eingesetzt wird das System zur präzisen Dickenmessung von Kunststoffbändern und Beschichtungen bis zu 3 mm Materialdicke und Bahnbreiten bis max. 1250 mm. Um ein Querprofil der Materialdicke zu erhalten, wird der Sensor über die Folie traversiert. Wird der Sensor an einer beliebigen Breitenposition gehalten, wird ein Längsprofil der Dicke generiert.

Die Integration erfolgt in kompletten Produktionslinien z.B. in der Kunststoffproduktion und der Batteriefolienherstellung. Die Systeme können sowohl in neue Anlagen integriert oder in Bestandsanlagen direkt nachgerüstet werden.

Persönliche Beratung
logo

Besonderheiten

  1. Eingesetzte Sensorik: combiSENSOR
  2. Messbreite: 500 / 750 / 1000 / 1250 mm
  3. Genauigkeit: ± 0,3 µm
  4. Messrate: 3,9 kHz
  5. Traversierende Messung oder Festspurmessung
  6. 24 V Versorgung für komplettes System
  7. Höchste Präzision bei attraktivem Preis
  8. OEM-fähig
