Extrudergehäuse-Durchmesser

Innendurchmesserinspektion von Extrudergehäusen

Das Sensorsystem idiamCONTROL misst präzise den Innendurchmesser von Bohrungen wie z.B. Extrudern, um daraus den Verschleiß zu ermitteln. Das idiamCONTROL wird in die Bohrung geführt und ermittelt den Bohrungsdurchmesser beim Herausziehen. Verschleißbasierte Toleranzüberschreitungen werden automatisch angezeigt und können über USB ausgegeben werden.

logo

Vorteile

  1. Touchscreen mit bedienerfreundlicher Software zur schnellen Auswertung direkt am Extruder
  2. Zuverlässige Messung auf bis zu 6 Spuren
  3. Geeignet für zahlreiche Extrudergehäuse von 32 bis 180 mm Durchmesser
  4. Direkte Durchmesseranzeige
  5. Automatische Bewertungsfunktion über Toleranzangaben
  6. USB-Schnittstelle zur Datenausgabe und Protokollierung
  7. Integrierter Funktionstest prüft den Arbeitszustand des Messsystems
[{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,63,64,68,69,90,91,92,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7805,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7804,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord-West","address":"Duisburger Str. 47\r\n46535 Dinslaken","central":false,"comment":"B\u00fcro Nord-West","companyName":"Micro-Epsilon","countries":"54","deZip":"40,41,42,44,45,46,47,48,49,50,51,52,53,58,59","email":"manfred.vanerp@micro-epsilon.de","emailCc":"astrid.bieringer@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 572","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1637},"internalNote":"","lName":"","map":null,"mobile":"","name":"Manfred van Erp","phone1":"+49 8542 \/ 168 - 572","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7803,"type":null,"uid":71,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7793,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7802,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Mitte","address":"Mantelhofstrasse 12\r\n73457 Essingen\/Aalen","central":false,"comment":"B\u00fcro S\u00fcd-Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"73,74,82,86,87,88,89","email":"joachim.bauer@micro-epsilon.de","emailCc":"gertraud.moser@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 574","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1634},"internalNote":"","lName":"","map":null,"mobile":"","name":"Joachim Bauer","phone1":"+49 8542 \/ 168 - 574","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7801,"type":null,"uid":74,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7800,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,75,76,77,78,79","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7799,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7798,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Franz Hochwimmer
Zum Kontaktformular
Ihre Anfrage zu: {product}
Bitte fügen Sie das Ergebnis der unten stehenden Aufgabe ein. Damit wird Spam vermieden.
captcha
* Pflichtangaben
Wir behandeln Ihre Daten vertraulich. Bitte lesen Sie dazu unsere Datenschutzerklärung.

Funktionsweise

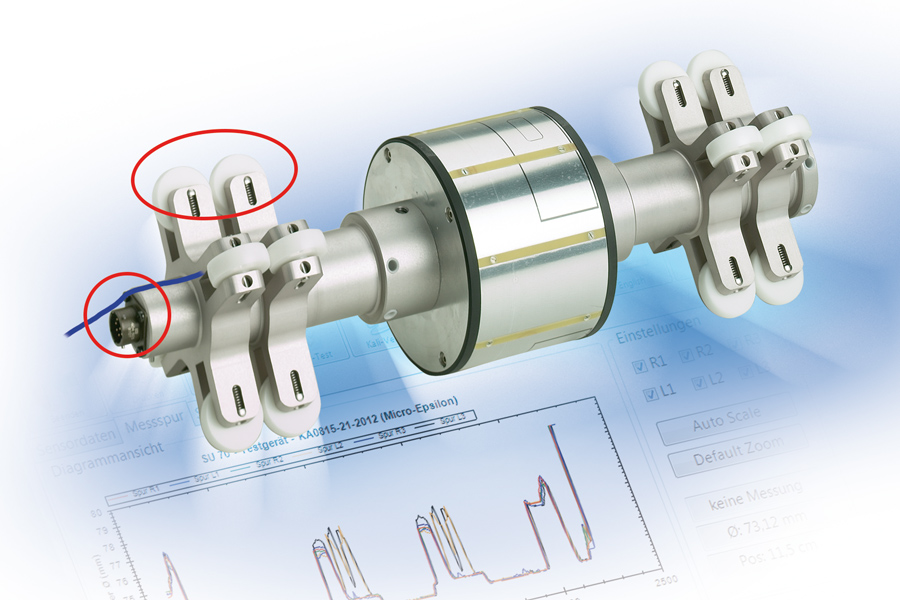

Das idiamCONTROL arbeitet mit integrierten kapazitiven Wegsensoren. Diese messen die tatsächlich vorhandenen Bohrungsdurchmesser über die gesamte Verfahrensteil-Länge. Durch die zusätzliche Erfassung der axialen Sensorposition mit einem Kabellängen-Messsystem werden örtlich vorhandene Durchmesserabweichungen schnell und sicher gefunden. Mit dem Kabellängen-Messsystem wird jeder Sensorposition in der Bohrungslängsachse ein Durchmesser zugeordnet. Als Ergebnis stehen die Durchmesserlängsprofile in sechs Spuren und einer axialen Ortsauflösung von 1 mm zur Verfügung. Aus den jeweiligen Durchmesserwerten wird über die Auswertesoftware der Verschleiß errechnet.
