thicknessGAUGE Kompakte O-Rahmen für Separatorfolien

Kompaktes Sensorsystem zur Dickenmessung von Separatorfolien und Batteriebeschichtungen

Zur stabilen Dickenmessung von Beschichtungen auf Separatorfolien wird das thicknessGAUGE O.IMS eingesetzt. Das System ist als kompakter O-Rahmen aufgebaut und nutzt ein Weißlichtinterferometer, das über die Batteriefolie traversiert. Dank der innovativen Technologie erfolgt die Dickenmessung berührungslos von nur einer Seite. Zwei Transportwalzen dienen zur Bandberuhigung.

Persönliche Beratung
logo

Besonderheiten

  1. Eingesetzte Sensorik: Weißlicht-Interferometer
  2. Kompakte Komplettlösung zur Inline-Dickenmessung
  3. Optimal geeignet zur hochauflösenden Dickenmessung auf beschichteten und unbeschichteten Batteriefolien und Separatorfolien
  4. Materialbreiten bis 1.250 mm
  5. Stabiler Aufbau für höchste Präzision mit Systemgenauigkeit ±0,2 µm
  6. Traversierende Messung oder Festspurmessung
  7. Vollautomatische Kalibrierung
  8. Umfassendes Softwarepaket zur Datenakquisition, Signalverarbeitung und Automatisierung im Lieferumfang
[{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,63,64,68,69,90,91,92,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8317,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8316,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord-West","address":"Duisburger Str. 47\r\n46535 Dinslaken","central":false,"comment":"B\u00fcro Nord-West","companyName":"Micro-Epsilon","countries":"54","deZip":"40,41,42,44,45,46,47,48,49,50,51,52,53,58,59","email":"manfred.vanerp@micro-epsilon.de","emailCc":"astrid.bieringer@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 572","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1637},"internalNote":"","lName":"","map":null,"mobile":"","name":"Manfred van Erp","phone1":"+49 8542 \/ 168 - 572","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8315,"type":null,"uid":71,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8305,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8314,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Mitte","address":"Mantelhofstrasse 12\r\n73457 Essingen\/Aalen","central":false,"comment":"B\u00fcro S\u00fcd-Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"73,74,82,86,87,88,89","email":"joachim.bauer@micro-epsilon.de","emailCc":"gertraud.moser@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 574","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1634},"internalNote":"","lName":"","map":null,"mobile":"","name":"Joachim Bauer","phone1":"+49 8542 \/ 168 - 574","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8313,"type":null,"uid":74,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8312,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,75,76,77,78,79","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8311,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8310,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Franz Hochwimmer
+49 8542 / 168 - 133
Zum Kontaktformular
Ihre Anfrage zu: {product}
Bitte fügen Sie das Ergebnis der unten stehenden Aufgabe ein. Damit wird Spam vermieden.
captcha
* Pflichtangaben
Wir behandeln Ihre Daten vertraulich. Bitte lesen Sie dazu unsere Datenschutzerklärung.

Ideal für alle beschichtete Batterie- und Separatorfolien

Das thicknessGAUGE kann einerseits zur Festspurmessung eingesetzt werden, z.B. zur Center-Line Messung (Mittendicke) oder zur Dickenmessung am Rand. Alternativ kann das Sensorsystem auch zur traversierenden Dickenmessung eingesetzt werden. Dank der Vielseitigkeit kann das thicknessGAUGE sowohl für intermittierende als auch längsbeschichtete Folien genutzt werden.

Einsatz thicknessGAUGE O-Rahmen Festspurmessung

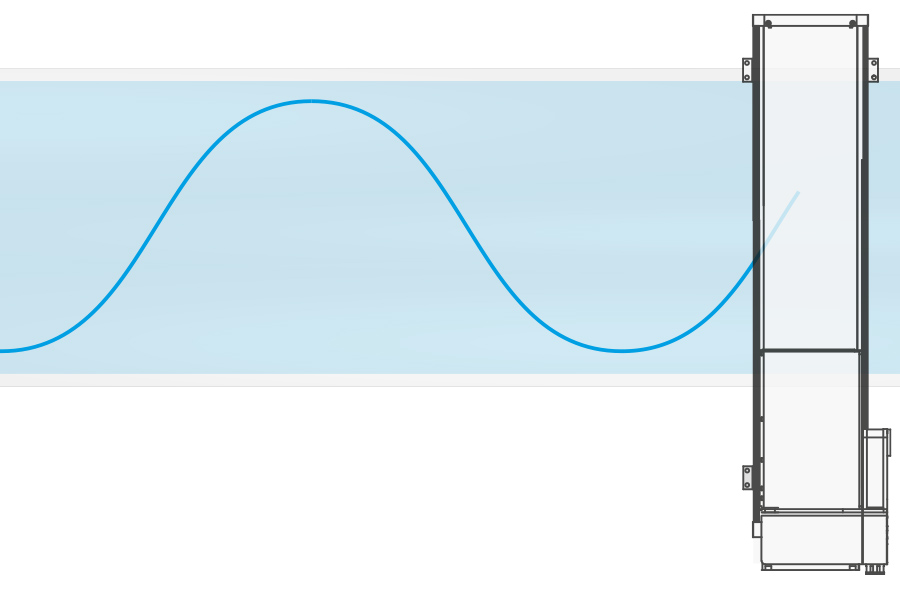

Einsatz thicknessGAUGE O-Rahmen traversierende Dickenmessung
