optoNCDT ILR3800-100

Leistungsstarker Laser-Distanzsensor

Leistungsstarker Laser-Distanzsensor

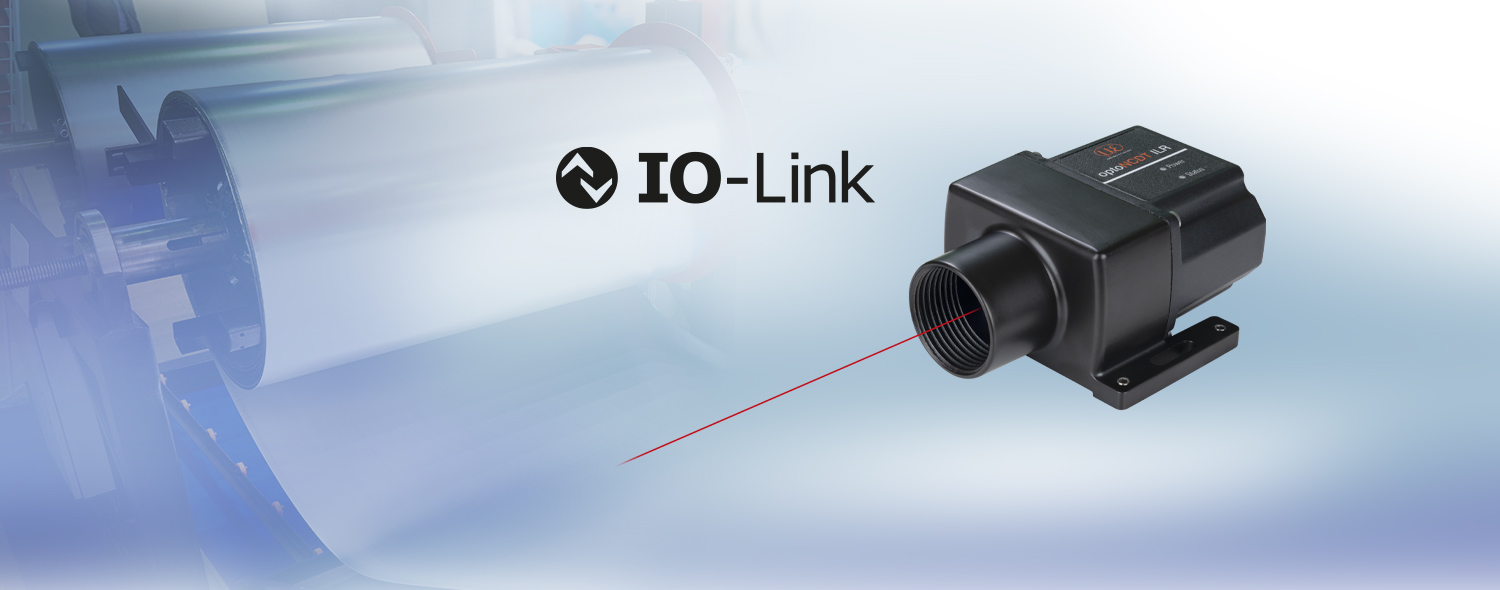

Der Laser-Distanzsensor optoNCDT ILR3800-100 grenzt sich besonders durch seine hohe Leistung in kleiner Bauform ab. Er ist für präzise Distanzmessungen im industriellen Umfeld konzipiert. Entfernungsmessungen sind bis 100 m möglich. Mit Reflektor sogar bis zu 150 m. Der integrierte AUTO-Messmodus ermöglicht die zuverlässige Messung auch auf dunklen, teilspiegelnden und weit entfernten Messobjekten. Durch die sehr hohe Signalstabilität können ILR3800-100 Sensoren zur Abstands- und Distanzmessungen auf zahlreichen Oberflächen eingesetzt werden.

Persönliche Beratung
logo

Besonderheiten

  1. Großer Messbereich bis zu 100 m (mit Reflektor bis 150 m)
  2. Sehr hohe Signalstabilität auf zahlreichen Oberflächen
  3. Linearität <±1 mm
  4. Reproduzierbarkeit <300 µm
  5. Auflösung 0,1 mm
  6. Analogausgang und digitale Schnittstellen (RS422 / USB / PROFINET/ Ethernet/IP / IO-Link)
  7. Robuster Sensoraufbau
  8. Kompakte und leichte Bauform
  9. Ideal für industrielle Anwendungen in der Serienproduktion
  10. Hohe Schutzart IP67 für den Außeneinsatz
