thicknessGAUGE

Sensorsystem zur Dicken- und Breitenmessung von Band- und Plattenmaterial

Sensorsysteme zur präzisen Dickenmessung von Band- und Plattenmaterial

Die thicknessGAUGE Sensorsysteme werden zur präzisen Dickenmessung von Band- und Plattenmaterial bis zu 50 mm eingesetzt. Mehrere Modelle mit verschiedenen Sensortypen, Messbereichen und Messbreiten ermöglichen die Inline-Dickenmessung von verschiedenen Materialien und Oberflächen mit einem unübertroffenen Preis-Leistungs-Verhältnis.

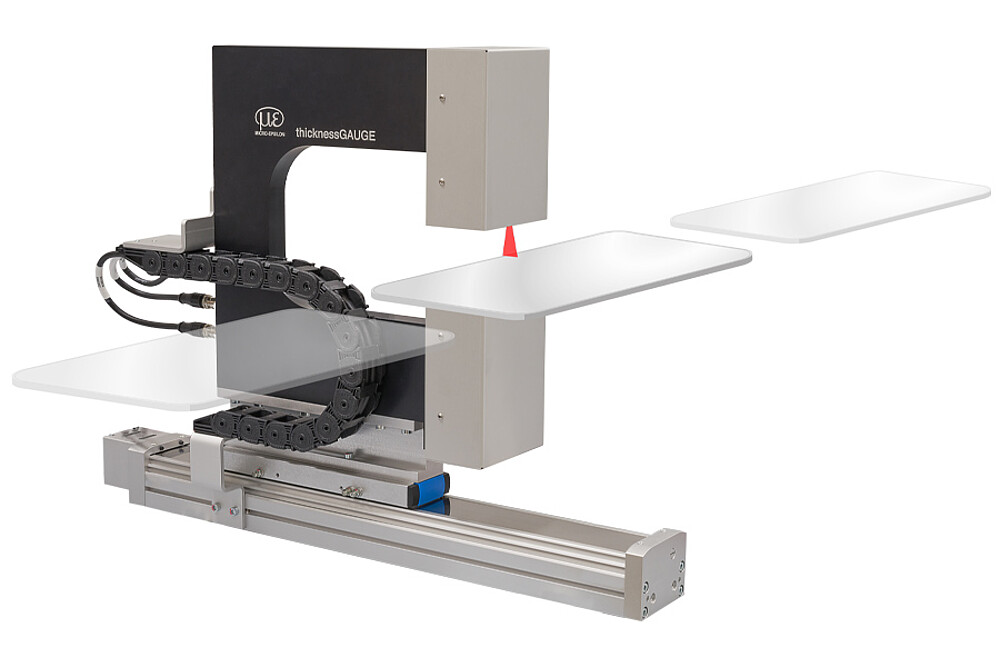

Das fertig montierte System besteht aus einem stabilen Rahmen, an dem zwei optische Abstandssensoren befestigt sind. Diese erfassen die Dicke des Messobjekts nach dem Differenzprinzip. Die Sensoren sind montageseitig aufeinander ausgerichtet. Eine werkseitige Dickenkalibrierung ermöglicht eine hohe Präzision in der Dickenmessung.

Über eine Linearachse wird das Sensorsystem von der Parkposition bis zur Messposition verfahren. In der Parkposition befindet sich das Messnormal für die vollautomatische Kalibrierung.

logo

Besonderheiten

  1. Kompakte Komplettlösung zur präzisen Inline-Dickenmessung
  2. Messung vieler Oberflächen und Materialien dank verschiedener Sensortechnologien
  3. Verfahrbar durch Linearachse
  4. Vollautomatische Kalibrierung
  5. 24 V Versorgung für komplettes System
  6. Integrierte Software
  7. optimales Preis-Leistungs-Verhältnis
[{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,63,64,68,69,90,91,92,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7805,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7804,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord-West","address":"Duisburger Str. 47\r\n46535 Dinslaken","central":false,"comment":"B\u00fcro Nord-West","companyName":"Micro-Epsilon","countries":"54","deZip":"40,41,42,44,45,46,47,48,49,50,51,52,53,58,59","email":"manfred.vanerp@micro-epsilon.de","emailCc":"astrid.bieringer@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 572","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1637},"internalNote":"","lName":"","map":null,"mobile":"","name":"Manfred van Erp","phone1":"+49 8542 \/ 168 - 572","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7803,"type":null,"uid":71,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7793,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7802,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Mitte","address":"Mantelhofstrasse 12\r\n73457 Essingen\/Aalen","central":false,"comment":"B\u00fcro S\u00fcd-Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"73,74,82,86,87,88,89","email":"joachim.bauer@micro-epsilon.de","emailCc":"gertraud.moser@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 574","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1634},"internalNote":"","lName":"","map":null,"mobile":"","name":"Joachim Bauer","phone1":"+49 8542 \/ 168 - 574","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7801,"type":null,"uid":74,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7800,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,75,76,77,78,79","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7799,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":null,"sorting":7798,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Franz Hochwimmer
Zum Kontaktformular
Ihre Anfrage zu: {product}
Bitte fügen Sie das Ergebnis der unten stehenden Aufgabe ein. Damit wird Spam vermieden.
captcha
* Pflichtangaben
Wir behandeln Ihre Daten vertraulich. Bitte lesen Sie dazu unsere Datenschutzerklärung.

Dickenmessung mit hoher Präzision

Die thicknessGAUGE Sensorsysteme werden in industriellen Umgebungen zur präzisen Dickenmessung von Bändern und Platten eingesetzt. Über die Lineareinheit mit elektromechanischem Antrieb kann eine traversierende Dickenmessung erfolgen. Alternativ erfolgt die Messung in festen Spuren, z.B. zur Center-Line Messung (Mittendicke) oder zur Dickenmessung am Rand.

logo

Automatische Kalibrierung & Temperaturkompensation

Die thicknessGAUGE Systeme sind mit einer In-Situ-Kalibration ausgestattet, um z.B. temperaturvariante Effekte zu kompensieren. Die Kalibrierzyklen sind dabei individuell einstellbar. Neben der Temperaturkompensation wird mit der In-Situ-Kalibration die einwandfreie Funktion des Systems jederzeit und zyklisch nachgewiesen.

Leistungsstarke Analyse- und Steuersoftware

  • Multitouchfähige Bedienoberfläche
  • Artikeldatenbank
  • Produktionsarchiv
  • Statistische Auswertungen
  • Grenzwertüberwachung mit Rückführung in die Produktion (Feldbusschnittstellen optional)
  • Nachweis der Prüfmittelfähigkeit

100 % Qualitätskontrolle während der Produktion

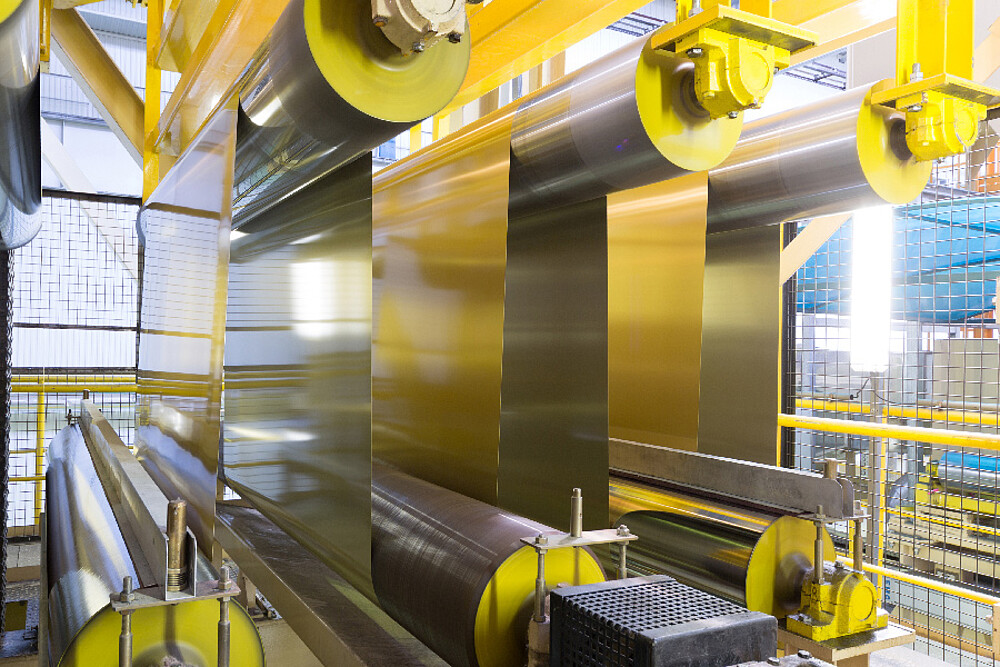

Die thicknessGAUGE Sensorsysteme werden in Bandprozesse und Plattenfertigung eingesetzt und messen kontinuierlich die Dicke. Dank der hohen Präzision und der zur Verfügung stehenden Sensorik werden die Sensorsysteme in zahlreichen Branchen eingesetzt.
