thicknessGAUGE

Sensorsystem zur präzisen Dickenmessung

thicknessGAUGE C.LP

Die thicknessGAUGE C.LP Sensorsysteme nutzen Laser-Profilscanner zur Dickenmessung. Die Scanner projizieren eine Laserlinie auf die Oberfläche. Dank der Laserlinie können Bandverkippungen kompensiert und Profile gemittelt werden. Das Laserlinien-Messverfahren erlaubt auch die Dickenmessung von strukturierten Materialien wie geprägten Oberflächen oder Lochblechen.

Persönliche Beratung
logo

Besonderheiten

  1. Eingesetzte Sensorik: Blue-Laser-Profilsensoren
  2. Messbereich Dicke: 15 mm
  3. Genauigkeit: ±1,2 µm
  4. Messrate: bis 100 Hz
  5. Geeignet für strukturiertes Material wie Lochblech oder geprägte Platten
  6. Best-fit Linie möglich
  7. Kompensation von Bandverkippungen
[{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,63,64,68,69,90,91,92,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8317,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8316,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord-West","address":"Duisburger Str. 47\r\n46535 Dinslaken","central":false,"comment":"B\u00fcro Nord-West","companyName":"Micro-Epsilon","countries":"54","deZip":"40,41,42,44,45,46,47,48,49,50,51,52,53,58,59","email":"manfred.vanerp@micro-epsilon.de","emailCc":"astrid.bieringer@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 572","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1637},"internalNote":"","lName":"","map":null,"mobile":"","name":"Manfred van Erp","phone1":"+49 8542 \/ 168 - 572","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8315,"type":null,"uid":71,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8305,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8314,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Mitte","address":"Mantelhofstrasse 12\r\n73457 Essingen\/Aalen","central":false,"comment":"B\u00fcro S\u00fcd-Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"73,74,82,86,87,88,89","email":"joachim.bauer@micro-epsilon.de","emailCc":"gertraud.moser@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 574","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1634},"internalNote":"","lName":"","map":null,"mobile":"","name":"Joachim Bauer","phone1":"+49 8542 \/ 168 - 574","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8313,"type":null,"uid":74,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8312,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,75,76,77,78,79","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8311,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8310,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Thomas Mutzl
+49 8542 / 168 - 525
Zum Kontaktformular

Finden Sie Ihren Ansprechpartner

Ihre Anfrage zu: {product}
Bitte fügen Sie das Ergebnis der unten stehenden Aufgabe ein. Damit wird Spam vermieden.
captcha
* Pflichtangaben
Wir behandeln Ihre Daten vertraulich. Bitte lesen Sie dazu unsere Datenschutzerklärung.

Präzise Dickenmessung mit Laser-Profilscannern

Die thicknessGAUGE C.LP Sensorsysteme sind betriebsfertig montiert und werkseitig kalibriert. Sie bestehen aus einem stabilen Rahmen, an dem zwei Laserscanner befestigt sind. Die Scanner erfassen die Dicke des Messobjekts nach dem Differenzprinzip. Die Laserscanner sind montageseitig exakt aufeinander ausgerichtet und ermöglichen dadurch eine hohe Messgenauigkeit.

Über eine Linearachse wird das Sensorsystem von der Parkposition bis zur Messposition verfahren. Zur vollautomatischen Kalibrierung wird das System in die Parkposition zurückbewegt.

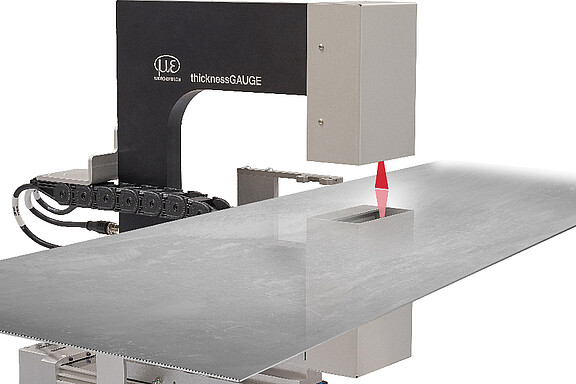

Sensorsystem mit zwei Laser-Scanner
