scanCONTROL 3xx


Schnelle und präzise 2D/3D-Profilmessung

Hohe Präzision und Stabiltät

Für Messungen mit hoher Dynamik

Performante Laser-Scanner für präzise Profilmessungen in dynamischen Prozessen

High-Performance-Laserscanner mit hoher Profilfrequenz und großer Auflösung

Die Laser-Scanner der Serien scanCONTROL 30x2 und 30x0 zählen zu den leistungsfähigsten Profilsensoren im Hinblick auf Baugröße, Genauigkeit und Messrate. Beide Baureihen sind mit einer Profilfrequenz von bis zu 10 kHz für präzise 2D und 3D-Messungen in dynamischen Prozessen ausgelegt und liefern kalibrierte Profildaten bis zu ca. 10 Millionen Punkten pro Sekunde.

Dank des innovativen High Dynamic Range Modus erzielen die Scanner exakte Messergebnisse auch auf anspruchsvollen Oberflächen und sind sowohl mit rotem als auch mit blauem Laser erhältlich.

Kontaktieren Sie uns
Download: Kataloge, Anleitungen, Software
logo

Besonderheiten

  1. Kompakte Scanner mit integriertem Controller - einfache Integration
  2. Messbereich x-Achse bis 600 mm | z-Achse bis 600 mm
  3. Auflösung x-Achse: 1.024 Punkte bzw. 2.048 Punkte/Profil
  4. Profilfrequenz bis zu 10 kHz - ideal für hochdynamische Prozesse
  5. Drei Betriebsarten: High-Resolution, High Dynamic Range, High Speed
  6. Roter Laser / patentierte Blue-Laser-Technologie
[{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,41","deZip":"36,60,61,62,63,64,68,69,70,71,72,73,74,75,76,77,78,79,82,86,87,88,89,90,91,92,96,97","email":"dominik.erbersdobler@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 656","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":54505},"internalNote":"","lName":"","map":null,"mobile":"","name":"Dominik Erbersdobler","phone1":"+49 8542 \/ 168 - 567","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":4096,"type":null,"uid":223,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,13","deZip":"80,81,83,84,85,93,94","email":"viktor.kirchgessner@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1856},"internalNote":"\u003Cp\u003E\u003Cstrong\u003EAT,DE\u003C\/strong\u003E,EE,IS,LT,LV\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Viktor Kirchgessner","phone1":"+49 8542 \/ 168 - 478","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11271,"type":null,"uid":183,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V3D","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,04,06,07,08,09,10,11,12,13,14,15,16,17,18,19,39,95,98,99","email":"christoph.rothe@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":77235},"internalNote":"","lName":"","map":null,"mobile":"","name":"Christoph Rothe","phone1":"+49 8542 \/ 168 - 256","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11794,"type":null,"uid":317,"usStates":"","website":"","worldwide":false},{"activity":"ME_DE_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,41","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,37,38,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,65,66,67","email":"matthias.schuhbauer@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":56413},"internalNote":"","lName":"","map":null,"mobile":"","name":"Matthias Schuhbauer","phone1":"+49 8542 \/ 168 - 528","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":4097,"type":null,"uid":296,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,62,63,64,66,67,68,69,74,90,91,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":13437,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38,48,49","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":13436,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,92,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":13425,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":13434,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,82,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":13432,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,73,75,76,77,78,79,86,87,88,89","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":13431,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,40,41,42,43,44,45,46,47,50,51,52,53,54,55,56,57,58,59,65","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":13430,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Micro-Epsilon Messtechnik 3D-Zentrale
+49 8542 / 168 - 888
Zum Kontaktformular

Finden Sie Ihren Ansprechpartner

Ihre Anfrage zu: {product}
* Pflichtangaben
Wir behandeln Ihre Daten vertraulich. Bitte lesen Sie dazu unsere Datenschutzerklärung.

Verfügbar als PROFILE- und SMART-Ausführung

Die Laser-Scanner sind als PROFILE- und SMART-Variante erhältlich. Die PROFILE-Scanner liefern kalibrierte Profildaten, die mit kundenseitiger Software weiterverarbeitet werden. Die SMART-Scanner arbeiten dagegen autark im Standalone-Betrieb und werten die Profile direkt im Sensor aus. Die gewünschten Messprogramme werden mit der Software scanCONTROL Configuration Tools parametriert und über den internen Controller ausgeführt.

Dank vordefinierter Betriebsarten lassen sich die Sensoren optimal auf die jeweilige Messaufgabe abstimmen: „High-Resolution" für höchste Präzision, „High Dynamic Range" für die optimale Profilerfassung auf inhomogenen oder schwierigen Oberflächen und „High Speed" für schnellstmögliche Messungen ohne Zeitversatz bei der Belichtung.

Ausführung Smart oder Profile
Laser-Scanner scanCONTROL 30x2

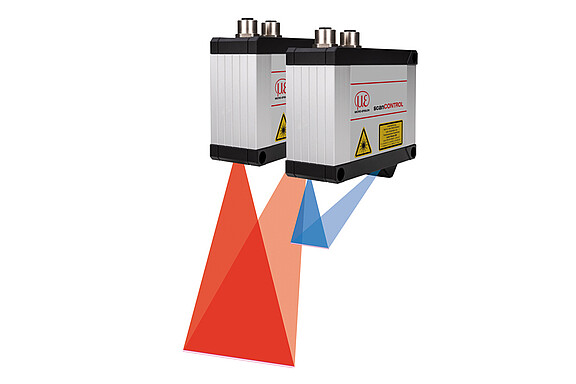

scanCONTROL 30x2

  • Messbereiche bis 600 x 600 mm
  • Messrate bis zu ca. 8.000.000 Punkte/Sek
  • Linearität  ab 2 μm
  • Auflösung bis zu 1.024 Punkte/Profil
Laser-Scanner scanCONTROL 30x0

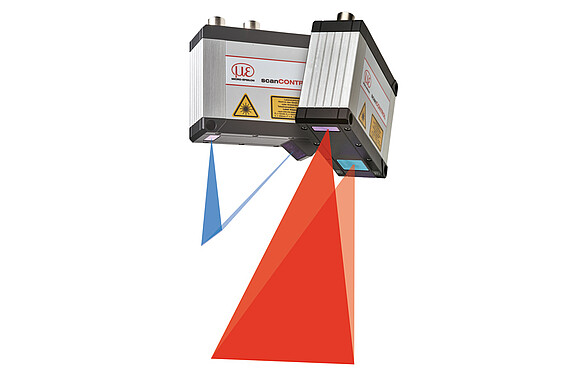

scanCONTROL 30x0

  • Messbereiche bis 600 x 600 mm
  • Messrate bis zu 10.000.000 Punkte/Sek
  • Linearität ab 1,5 μm
  • Auflösung bis zu 2.048 Punkte/Profil

Großer Messbereich mit 430 und 600 mm

Die scanCONTROL 30xx Laserscanner sind nun auch mit einem großem Messbereich erhältlich, der ein Messfeld von 430 x 390 mm bzw. 600 x 600 mm abdeckt. Dadurch können große Messobjekte mit hoher Genauigkeit erfasst werden.

Laser scanner large measuring range
Profilmessung mit Screenshot auf inhomogene Oberflächen

HDR Modus

Dank des High Dynamic Range Modus generiert der Sensor exakte Messergebnisse auch auf inhomogenen Oberflächen. Die Belichtungen erfolgen zeitgleich ohne Zeitversatz und ermöglichen die zuverlässige Erfassung von schnell bewegten Objekten.

Schnell zum Messergebnis dank Betriebsmodi

Je nach Messaufgabe kann aus drei vordefinierten Betriebsarten gewählt werden. „High-Resolution“ für die allerhöchste Präzision, „High Dynamic Range“ für optimale Profilerfassung auf schwierigen Oberflächen und „High Speed“ für schnellstmögliche Messungen.

Darstellung Messung Laserscanner

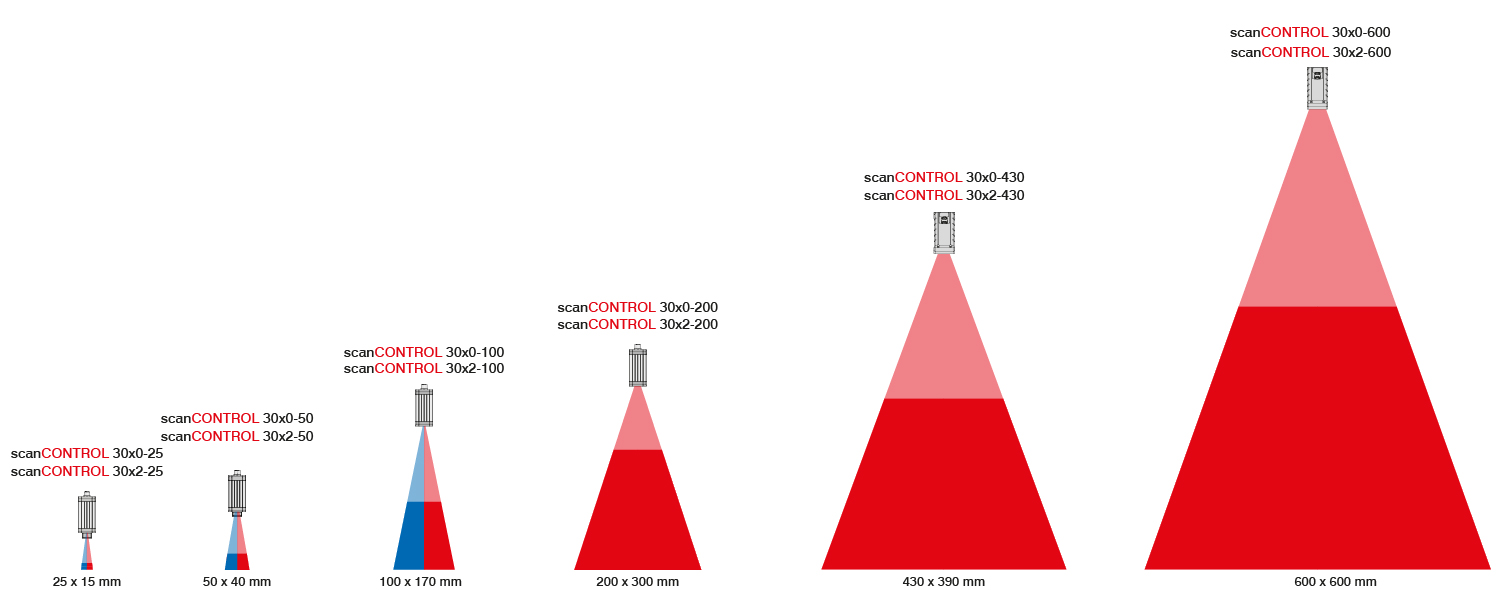

Verfügbare Messbereiche

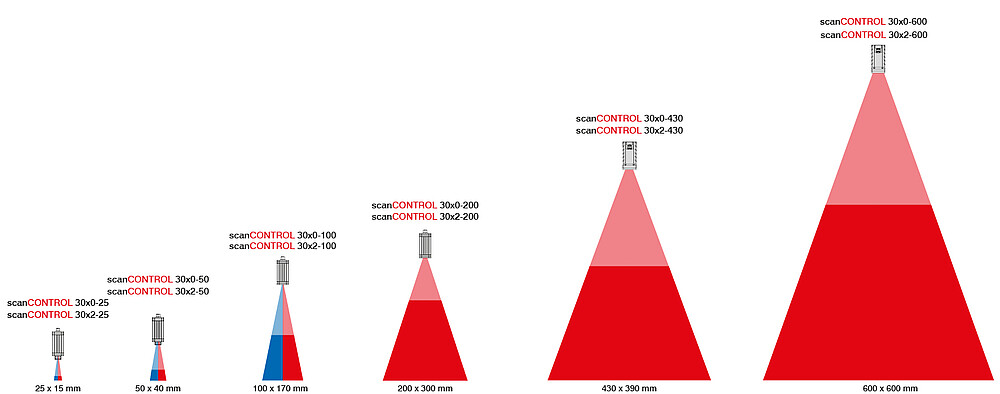

Messbereiche scanCONTROL 30xx
