scanCONTROL 30x2
Präzise 2D/3D-ProfilmessungPerformante 2D/3D Laser-Scanner
Laser-Scanner der Serie scanCONTROL 30x2 sind leistungsfähige Profilsensoren im Hinblick auf Baugröße, Genauigkeit und Messrate. Die Laser-Scanner liefern kalibrierte 2D-Profildaten mit bis zu ca. 8 Millionen Punkten pro Sekunde. Mit einer Profilfrequenz von maximal 10 kHz sind die Scanner zur präzisen Profilmessung in dynamischen Prozessen ausgelegt. Die Sensormatrix bietet eine Auflösung von 1.024 Punkten bei einem Punktabstand ab 24 µm. Damit können auch kleine Details zuverlässig erfasst werden.
Besonderheiten
- Messbereich z-Achse bis 600 mm
- Messbereich x-Achse bis 380 mm
- Messgeschwindigkeit bis zu 10 kHz
- Messrate bis zu ca. 8.000.000 Punkte/sec
- Linien-Linearität z-Achse ab 2 μm
- Auflösung x-Achse bis zu 1.024 Punkte
- Auch mit blauem Laser verfügbar
- Kompatibel mit Cognex VisionPro
- Schnellste SMART-Auswertung direkt im Sensor: bis zu 10 kHz
- Optimale Anbindung an SPS dank UDP-Bundling ohne Informationsverlust
- Zertifiziert nach UL 61010-1
[{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,104","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"diniel.patel@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1859},"internalNote":"\u003Cp\u003EBA,BG,\u003Cstrong\u003EDE\u003C\/strong\u003E,GR,HR,HU,ID,\u003Cstrong\u003EIT\u003C\/strong\u003E,LI,ME,MK,MT,PL,RS,RU,SI,TR\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Diniel Patel","phone1":"+49 8542 \/ 168 - 627","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":8707,"type":null,"uid":180,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,41","deZip":"36,60,61,62,63,64,68,69,70,71,72,73,74,75,76,77,78,79,82,86,87,88,89,90,91,92,96,97","email":"dominik.erbersdobler@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 656","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":54505},"internalNote":"","lName":"","map":null,"mobile":"","name":"Dominik Erbersdobler","phone1":"+49 8542 \/ 168 - 567","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":1536,"type":null,"uid":223,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,39,95,98,99","email":"thomas.reitberger@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1854},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas Reitberger","phone1":"+49 8542 \/ 168 - 652","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":8710,"type":null,"uid":182,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V2DSC","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,13","deZip":"20,21,22,23,24,25,26,27,28,29,40,41,42,43,44,45,46,47,48,49,80,81,83,84,85,93,94","email":"viktor.kirchgessner@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1856},"internalNote":"\u003Cp\u003E\u003Cstrong\u003EAT,DE\u003C\/strong\u003E,EE,IS,LT,LV\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Viktor Kirchgessner","phone1":"+49 8542 \/ 168 - 478","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":8711,"type":null,"uid":183,"usStates":"","website":"","worldwide":false},{"activity":"ME_DE_V2DSC","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54,41","deZip":"30,31,32,38,50,51,52,53,58,59","email":"matthias.schuhbauer@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":56413},"internalNote":"","lName":"","map":null,"mobile":"","name":"Matthias Schuhbauer","phone1":"+49 8542 \/ 168 - 528","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":1537,"type":null,"uid":296,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V3D","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":false,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,82,83,84,85,90,91,92,93,94,96","email":"tobias.wimmer@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":53102},"internalNote":"\u003Cp\u003EAT,DE,EE,IS,LT,LV\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Tobias Wimmer","phone1":"+49 8542 \/ 168 - 454","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8978,"type":null,"uid":212,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Mitte","address":"Wiesenstr. 29\r\n63533 Mainhausen","central":false,"comment":"B\u00fcro Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"36,60,61,63,64,68,69,90,91,92,96,97","email":"gernot.eiermann@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 578","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1639},"internalNote":"","lName":"","map":null,"mobile":"","name":"Gernot Eiermann","phone1":"+49 8542 \/ 168 - 578","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9341,"type":null,"uid":69,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord","address":"Heidkoppelweg 1\r\n25474 Ellerbek","central":false,"comment":"B\u00fcro Nord","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,38","email":"giorgio.angelini@micro-epsilon.de","emailCc":"isabella.schramm@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 566","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1638},"internalNote":"","lName":"","map":null,"mobile":"","name":"Giorgio Angelini","phone1":"+49 8542 \/ 168 - 566","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9340,"type":null,"uid":70,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Nord-West","address":"Duisburger Str. 47\r\n46535 Dinslaken","central":false,"comment":"B\u00fcro Nord-West","companyName":"Micro-Epsilon","countries":"54","deZip":"40,41,42,44,45,46,47,48,49,50,51,52,53,58,59","email":"manfred.vanerp@micro-epsilon.de","emailCc":"astrid.bieringer@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 572","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1637},"internalNote":"","lName":"","map":null,"mobile":"","name":"Manfred van Erp","phone1":"+49 8542 \/ 168 - 572","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9339,"type":null,"uid":71,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost1","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,07,08,09,95,98","email":"olaf.gerstner@micro-epsilon.de","emailCc":"selina.krieger@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1636},"internalNote":"","lName":"","map":null,"mobile":"","name":"Olaf Gerstner","phone1":"+49 35201 \/ 729 - 300","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9329,"type":null,"uid":72,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Ost2","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2","companyName":"Micro-Epsilon","countries":"54","deZip":"04,05,06,10,11,12,13,14,15,16,17,18,19,39,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1635},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9338,"type":null,"uid":73,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Mitte","address":"Mantelhofstrasse 12\r\n73457 Essingen\/Aalen","central":false,"comment":"B\u00fcro S\u00fcd-Mitte","companyName":"Micro-Epsilon","countries":"54","deZip":"73,74,82,86,87,88,89","email":"joachim.bauer@micro-epsilon.de","emailCc":"gertraud.moser@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 574","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1634},"internalNote":"","lName":"","map":null,"mobile":"","name":"Joachim Bauer","phone1":"+49 8542 \/ 168 - 574","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9337,"type":null,"uid":74,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-Ost1","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro S\u00fcdost 1","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,83,84,85,93,94","email":"klaus.brinninger@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 85 42 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1633},"internalNote":"","lName":"","map":null,"mobile":"","name":"Klaus Brinninger","phone1":"+49 85 42 \/ 168 - 132","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9336,"type":null,"uid":75,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_Sued-West2","address":"Hinter Winterbach 10 a \r\n77794 Lautenbach","central":false,"comment":"B\u00fcro S\u00fcdwest","companyName":"Micro-Epsilon","countries":"54","deZip":"70,71,72,75,76,77,78,79","email":"udo.schwenk@micro-epsilon.de","emailCc":"doris.koenigseder@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 575","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1632},"internalNote":"","lName":"","map":null,"mobile":"","name":"Udo Schwenk","phone1":"+49 8542 \/ 168 - 575","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9335,"type":null,"uid":76,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-2D_Buero_West","address":"Tannenweg 9\r\n58762 Altena","central":false,"comment":"B\u00fcro West","companyName":"Micro-Epsilon","countries":"54","deZip":"33,34,35,37,54,55,56,57,65,66,67","email":"marcus.gluth@micro-epsilon.de","emailCc":"celina.kroiss@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 503","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1631},"internalNote":"","lName":"","map":null,"mobile":"","name":"Marcus Gluth","phone1":"+49 8542 \/ 168 - 503","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":9334,"type":null,"uid":77,"usStates":"","website":"","worldwide":false}]
Kontakt
Micro-Epsilon Messtechnik 3D-Zentrale
Ihr zentraler Ansprechpartner:
Diniel Patel
Ihr zentraler Ansprechpartner:
Dominik Erbersdobler
Ihr zentraler Ansprechpartner:
Thomas Reitberger
Ihr zentraler Ansprechpartner:
Viktor Kirchgessner
Ihr zentraler Ansprechpartner:
Matthias Schuhbauer
Ihr regionaler Ansprechpartner:
Tobias Wimmer
Ihr regionaler Ansprechpartner:
Gernot Eiermann
Ihr regionaler Ansprechpartner:
Giorgio Angelini
Ihr regionaler Ansprechpartner:
Manfred van Erp
Ihr regionaler Ansprechpartner:
Olaf Gerstner
Ihr regionaler Ansprechpartner:
Thomas Rümmler
Ihr regionaler Ansprechpartner:
Joachim Bauer
Ihr regionaler Ansprechpartner:
Klaus Brinninger
Ihr regionaler Ansprechpartner:
Udo Schwenk
Ihr regionaler Ansprechpartner:
Marcus Gluth

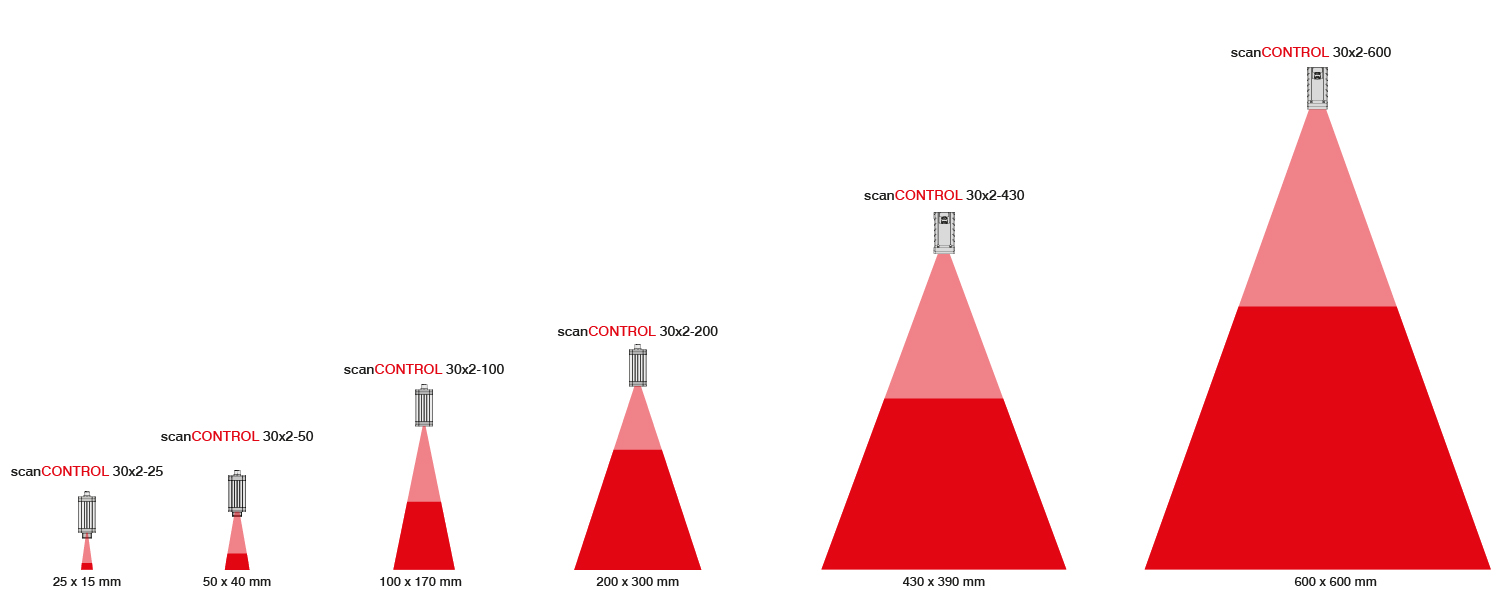

Großer Messbereich mit 430 und 600 mm
Die scanCONTROL 30x2 Laserscanner sind nun auch mit einem großem Messbereich erhältlich, der ein Messfeld von 430 x 390 mm bzw. 600 x 600 mm abdeckt. Dadurch können große Messobjekte mit hoher Genauigkeit erfasst werden.
