capaNCDT 6110

Kompaktes kapazitives Einkanal-Messsystem

Kompaktes kapazitives Sensor-System

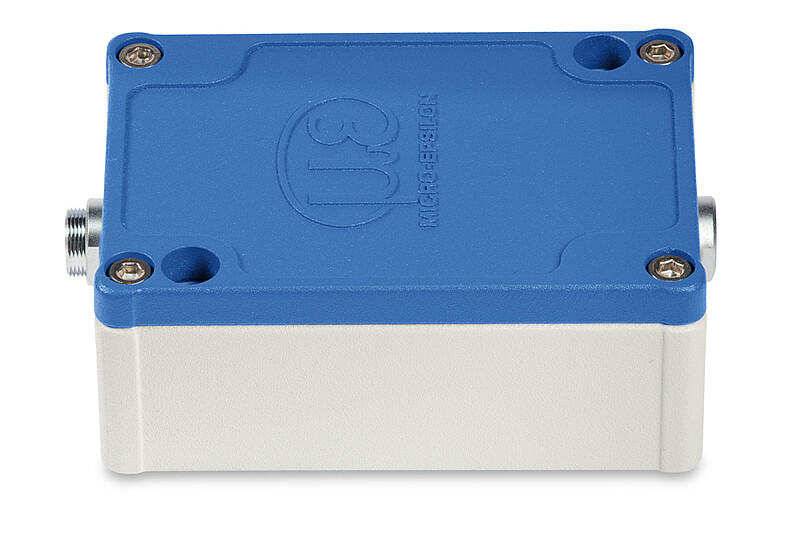

Das capaNCDT 6110 ist ein neuartiges kapazitives Einkanal-Wegmesssystem, bestehend aus einem kompakten Controller, dem Sensorkabel und dem Sensor. Dank der miniaturisierten Controller-Bauform und der einfachen Bedienung ist das capaNCDT 6110 besonders zur Maschinen- und Anlagenintegration geeignet.

logo

Besonderheiten

  1. Messbereiche (mm): 0,05 | 0,2 | 0,5 | 0,8 | 1 | 2 | 3 | 5 | 10
  2. Linearität max. 0,025 µm
  3. Auflösung max. 0,005 µm
  4. Analogausgang (Spannung)
  5. Digitalschnittstelle RS485 (Controller DT6120)
  6. Miniaturisierte Controller-Bauform
  7. Versorgungsspannung 24 VDC/55 mA (9 - 36 V)
  8. Für Messungen mit hoher Genauigkeit und Stabilität
