surfaceCONTROL 3D 3200
Performanter 3D-Snapshot-Sensor für industrielle Mess- und Prüfaufgaben
Der performante 3D-Snapshot-Sensor surfaceCONTROL 3D 3200 ist für den Einsatz in industriellen Anwendungen zur automatisierten Inline-3D-Messung zur Geometrie-, Form- und Oberflächenprüfung auf diffus reflektierenden Oberflächen bestens geeignet. Die kompakte Bauform sowie die hohe Messgenauigkeit bei gleichzeitig hoher Geschwindigkeit bei der Datenverarbeitung zeichnen den Sensor aus. Mit einer hohen z-Wiederholpräzision von bis zu 0,6 µm ist der Sensor für präzise 3D-Mess- und Inspektionsaufgaben bestens geeignet. Unterschiedliche Messfelder werden durch zwei verschiedene Messbereiche abgedeckt.
Besonderheiten
- Mikrometergenaue Snapshots bei gleichzeitig großen Messfeldern
- Schnelle 3D-Messung ab 0,3 s Aufnahmezeit
- Höchste Präzision bis zu < 0,4 μm
- Schmale und kompakte Sensorbauform
- Digitale Schnittstellen (integriert): GigE Vision/GenICam
- Digitale Schnittstellen (über 2D/3D Gateway): PROFINET / EtherCAT / EtherNet/IP *
- Digitale Ein-/Ausgänge: 4 parametrierbare Digital-I/Os (für externen Trigger, Steuerung des Sensors, Ausgabe Sensorzustände)
[{"activity":"DE_ME_V3D","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,39,95,98,99","email":"thomas.reitberger@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1853},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas Reitberger","phone1":"+49 8542 \/ 168 - 652","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":7697,"type":null,"uid":185,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-3D_Ost","address":"Lessingstr. 14\r\n01465 Langebr\u00fcck","central":false,"comment":"B\u00fcro Ost 2 3D","companyName":"Micro-Epsilon","countries":"54","deZip":"01,02,03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,39,95,98,99","email":"thomas.ruemmler@micro-epsilon.de","emailCc":"andrea.huber@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 35201 \/ 729 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1660},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas R\u00fcmmler","phone1":"+49 35201 \/ 729-301","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8308,"type":null,"uid":79,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V3D","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":false,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,86,87,88,89,97","email":"thomas.penski@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1855},"internalNote":"","lName":"","map":null,"mobile":"","name":"Thomas Penski","phone1":"+49 8542 \/ 168 - 492","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":8211,"type":null,"uid":184,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-3D_Nord-West","address":"K\u00f6nigbacher Str. 15\r\n94496 Ortenburg","central":false,"comment":"B\u00fcro Nord-West 3D","companyName":"Micro-Epsilon","countries":"54","deZip":"20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,37,38,40,41,42,43,44,45,46,47,48,49,58,59","email":"jan-thorben.willenbrink@micro-epsilon.de","emailCc":"3D@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 718","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1662},"internalNote":"","lName":"","map":null,"mobile":"","name":"Jan-Thorben Willenbrink","phone1":"+49 8542 \/ 168 - 718","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8309,"type":null,"uid":78,"usStates":"","website":"","worldwide":false},{"activity":"DE_MEAD-3D_Sued-West","address":"Manfred-W\u00f6rner-Str. 101\r\n73037 G\u00f6ppingen\r\nGermany","central":false,"comment":"B\u00fcro S\u00fcd-West 3D","companyName":"Micro-Epsilon","countries":"54","deZip":"35,36,50,51,52,53,54,55,56,57,60,61,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,86,87,88,89,97","email":"jens.hoeppner@micro-epsilon.de","emailCc":"3D@micro-epsilon.de","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 92 670","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1659},"internalNote":"","lName":"","map":null,"mobile":"","name":"Jens H\u00f6ppner","phone1":"+49 8542 \/ 168 - 670","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":8307,"type":null,"uid":80,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V3D","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":true,"comment":"","companyName":"Micro-Epsilon","countries":"13,54","deZip":"80,81,82,83,84,85,90,91,92,93,94,96","email":"viktor.kirchgessner@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1850},"internalNote":"\u003Cp\u003E\u003Cstrong\u003EAT,DE\u003C\/strong\u003E,EE,IS,LT,LV\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Viktor Kirchgessner","phone1":"+49 8542 \/ 168 - 478","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":7689,"type":null,"uid":188,"usStates":"","website":"","worldwide":false},{"activity":"DE_ME_V3D","address":"K\u00f6nigbacher Str.15\r\n94496 Ortenburg, Germany","central":false,"comment":"","companyName":"Micro-Epsilon","countries":"54","deZip":"80,81,82,83,84,85,90,91,92,93,94,96","email":"tobias.wimmer@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"+49 8542 \/ 168 - 90","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":53102},"internalNote":"\u003Cp\u003EAT,DE,EE,IS,LT,LV\u003C\/p\u003E","lName":"","map":null,"mobile":"","name":"Tobias Wimmer","phone1":"+49 8542 \/ 168 - 454","phone2":"","pid":358,"products":"","regional":true,"showMail":false,"sorting":7954,"type":null,"uid":212,"usStates":"","website":"","worldwide":false}]
Kontakt
Micro-Epsilon Messtechnik 3D-Zentrale
Ihr zentraler Ansprechpartner:
Thomas Reitberger
Ihr regionaler Ansprechpartner:
Thomas Rümmler
Thomas Penski
Ihr regionaler Ansprechpartner:
Jan-Thorben Willenbrink
Ihr regionaler Ansprechpartner:
Jens Höppner
Ihr zentraler Ansprechpartner:
Viktor Kirchgessner
Ihr regionaler Ansprechpartner:
Tobias Wimmer
* Auswertungen von 3DInspect können über diese Feldbusse an eine SPS übertragen werden. Sensoreinstellungen können über 3DInspect mittels Parametersatzmapping durch eine Steuerung geladen werden

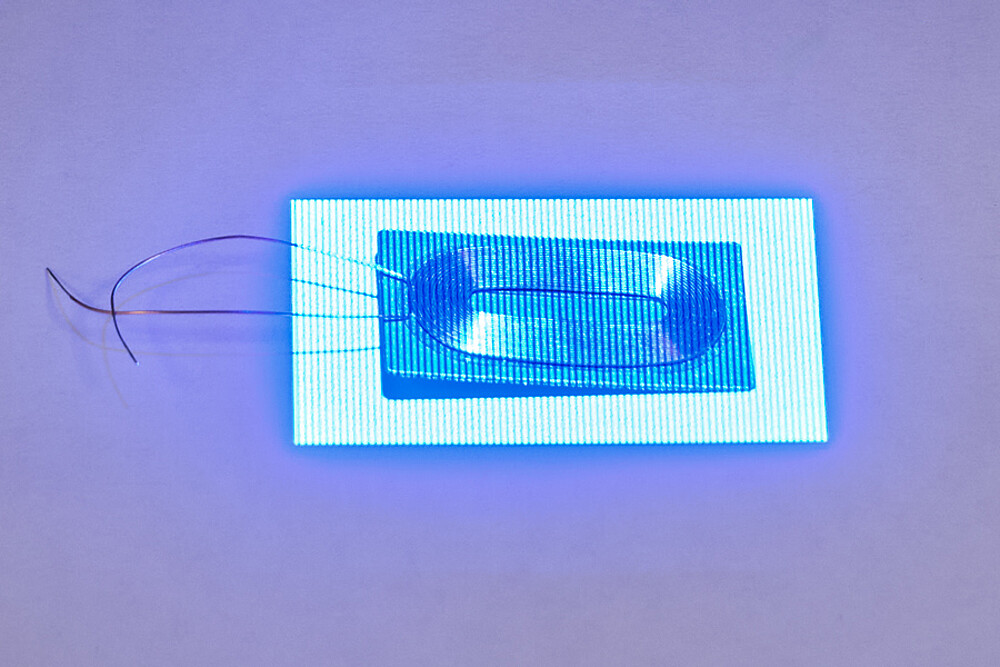

Hochpräziser 3D-Sensor für kleinste Messobjekte
Mit dem kleinen Messbereich von 30 x 18,5 mm erfasst der surfaceCONTROL 32x0-30 selbst feinste 3D- und Oberflächenstrukturen äußerst präzise und zuverlässig. Die hohe Auflösung in z sowie die genaue Wiederholpräzision ermöglichen hochpräzise Messungen. Zusätzlich können sehr kleine Objekte bei einem Arbeitsabstand von 130 mm detektiert werden, während eine hohe XY-Auflösung ab 16 µm für eine noch genauere Erfassung sorgt.
240 mm größerer Messbereich bei ausgezeichneter Präzision in Z
Mit dem Messbereich von bis zu 245 x 180 mm erfasst der surfaceCONTROL 35x0-240 bei größeren Targets Strukturen und Details mit großer Präzision. Aufgrund des hohen z-Messbereichs von 240 mm eignen sich die Sensoren ausgezeichnet für Anwendungen mit großen Messvolumen. Die hohe Auflösung in z von 5 µm im Zusammenspiel mit dem größeren Messbereich ermöglicht maximale Präzision für vielfältige Anwendungen, z.B. zur Prüfung von Bipolarplatten für Brennstoffzellen.
3D-Messung der neuen Generation
Der surfaceCONTROL 3D 3200 besitzt neben der schnellen Datenausgabe eine zusätzliche IO-Schnittstelle. EtherNET/IP, PROFINET sowie EtherCAT stehen durch die Nutzung des 2D/3D Gateway II zur Verfügung. Die 3D GigE Vision-Komptabilität erlaubt zudem die problemlose Einbindung in die Bildverarbeitungssoftware von Drittanbietern. Das Softwarepaket wird durch ein umfangreiches SDK zur kundenseitigen Softwareintegration abgerundet.
Anwendungsbeispiele:
- 3D-Prüfung der Geometrie und Formerfassung
- Prüfung elektronischer Komponenten
- Automatisierung, Fertigungs- und Prozessüberwachung sowie Qualitätskontrolle
- Berührungslose Vermessung von diffus reflektierenden Oberflächen im Stop&Go Prozess
- Form-, Lage- und Oberflächenprüfung
3DInspect: Software zur Lösung von 3D-Messaufgaben und Inspektionsaufgaben
Die Software 3DInspect ist ein leistungsstarkes Tool zur Sensorparametrierung sowie zur Lösung industrieller Messaufgaben. Die Software überträgt die Messdaten vom Sensor über Ethernet und stellt diese dreidimensional dar. Diese 3D-Daten werden auf dem PC mit 3DInspect Messprogrammen weiterverarbeitet, ausgewertet, beurteilt, und bei Bedarf protokolliert über Ethernet an eine Steuereinheit übermittelt. Die 3D-Daten können bei Bedarf mit der Software gespeichert werden. Darüber hinaus kann der Sensor über die Software konfiguriert und parametriert werden. Zur Anbindung an eine Automatisierungsschnittstelle wird die Funktionserweiterung 3DInspect Automation mit Verwendung der SC3210 Sensoren freigeschaltet, die auch eine umfassende Datenprotokollierung beinhaltet.
